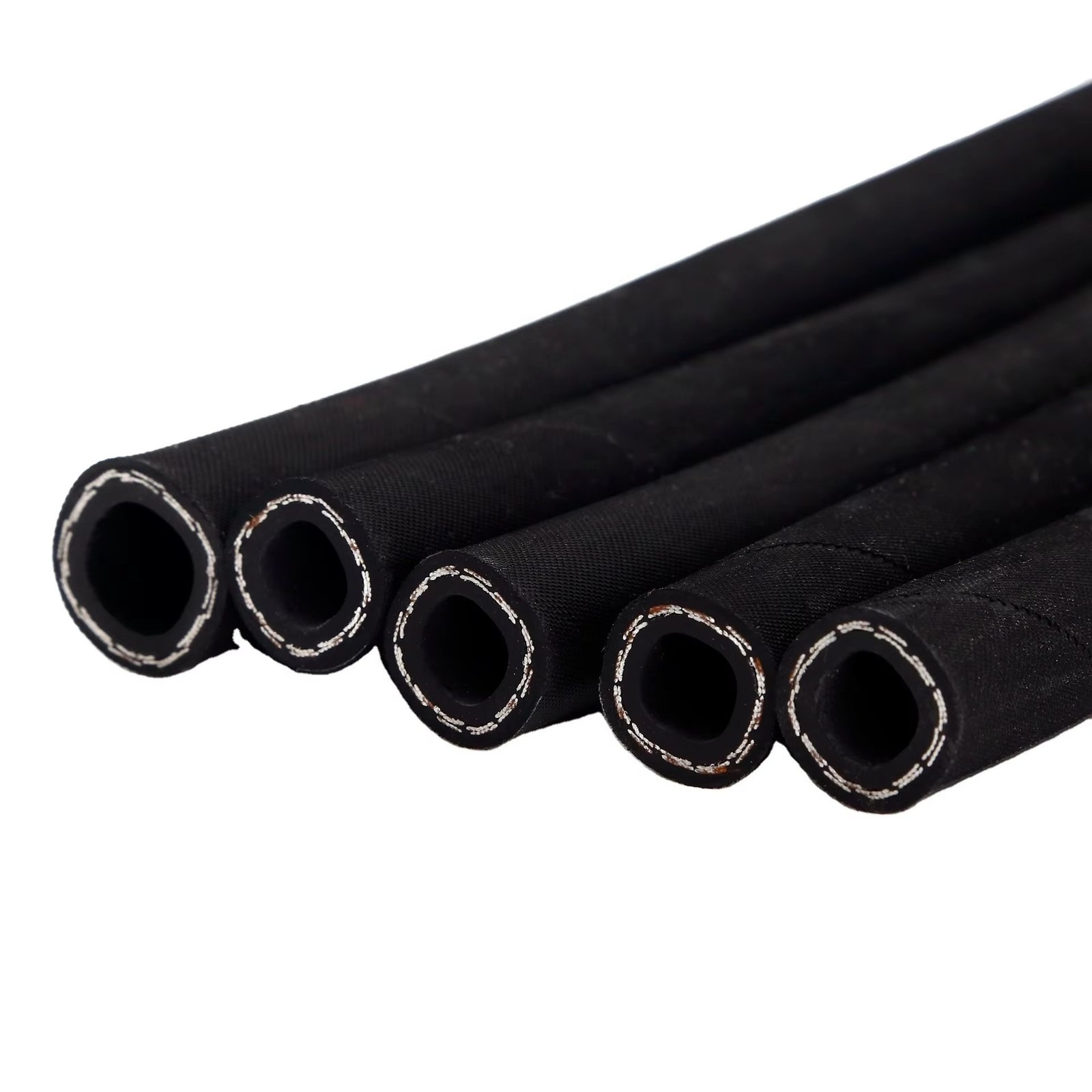

SAE 100R1AT Hydraulic Hose
SAE 100R1AT Hydraulic Hose
222
Hydraulic Hose SAE 100R1AT / EN 853 1SN

SAE 100R1AT Hydraulic Hose

SKU: Hydraulic Hose · 2 sizes available

Single-wire-braid medium-pressure hydraulic hose with embossed MSHA-approved cover.

$0.74 /meter
From $0.74/meter MOQ 100 meter
Quantity (meter)Unit Price
100–299 meter $0.95/meter
300–999 meter $0.87/meter
1,000–4,999 meter $0.81/meter
5,000+ meter $0.74/meter Best
Minimum order: 100 meter. Higher quantity = lower unit price.
ⓘ Estimated unit price: $0.95/meter · This is an estimate — final pricing is confirmed in your quote.
Quick Inquiry View list

Product description

Type A maximum oil resistant synthetic rubber tube, one braid of high tensile steel wire reinforcement, oil, weather and abrasion resistant MSHA approved cover. Temperature -40°F to +212°F (-40°C to +100°C). Embossed branding. Medium pressure hydraulic hose suitable for use with petroleum based hydraulic fluids, lubricating oils, water and water emulsion hydraulic fluids.

Product parameters

StandardSAE 100R1AT / EN 853 1SN
TubeType A maximum oil resistant synthetic rubber
ReinforcementOne braid of high tensile steel wire
CoverOil, weather, and abrasion resistant MSHA approved cover
Temperature-40°F to +212°F (-40°C to +100°C)
BrandingEmbossed
ApplicationMedium pressure hydraulic hose for petroleum-based fluids, lubricating oils, water and water emulsion

SIZE & parameters

SIZE INSIDE (MM) BRAID (MM) OUTSIDE (MM) WORKING PRESSURE BURST PRESSURE Bend Radius Weight Length
DN INCH MM DASH MIN MAX MIN MAX MAX BAR PSI BAR PSI mm kg/m M
5 3/16” 4.8 -3 4.6 5.4 9.0 10.0 12.5 250 3625 1000 14500 90 0.2 50/100
